Unity Sports is a hydrofoil manufacturer and OEM supplier serving water-sports brands, wholesalers, distributors, and product developers. Since 2012, we have manufactured complete hydrofoil systems, front and rear wings, carbon and aluminum masts, fuselages, top plates, and custom composite components for wing, surf, wake, SUP, downwind, kite, wind, and pump foiling. We support projects from engineering review and mold development through sampling, testing, mass production, private labeling, and packaging.
Our in-house material and process teams select carbon fiber, fiberglass, G10, metal, and core structures according to the required balance of weight, stiffness, durability, and target cost. For projects beyond standard foil components, review our custom carbon fiber manufacturing capabilities.
Hydrofoil components are checked against the agreed design and test requirements. In our structural test, the tested hydrofoil structure completed a 350 kg load test with no damage. Carbon-fiber flat-bar samples completed a 120 kg bend/break load test with no damage, while aluminum flat-bar samples completed a 150 kg bend/break load test with no damage. These results apply to the tested samples and setups; final acceptance criteria are confirmed for each product design.
We manufacture for established and emerging water sports brands. Our production experience helps buyers identify material, tooling, fit, finish, and quality-control risks before volume production.
Send us your drawings, 3D files, target performance, and order requirements. Our team reviews manufacturability, recommends materials and processes, develops the sample, records approval requirements, and transfers the approved specification to mass production.
Choose an existing Unity Sports hydrofoil platform for a faster, lower-tooling route, or develop a proprietary system from your own design. Existing models can be configured with different wing areas, mast and fuselage options, materials, finishes, colors, logos, bags, and packaging. Fully custom projects can include engineering review, dedicated molds, prototype sampling, testing, and controlled mass production. MOQ, tooling, sample time, and production lead time depend on the selected platform and customization level.
Representative options include our 1210 cm² high-aspect wing surf foil, 2100 cm² carbon fiber hydrofoil, integrated carbon foil mast, and 1400 carbon hydrofoil front wing.

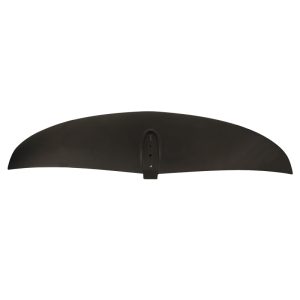

Unity Sports foil front wings range from 1100 to 2100sqcm, featuring medium to high aspect ratio designs for enhanced glide, lift and efficiency.
Constructed from prepreg carbon fiber with aerospace-grade foam core, offering lightweight strength and durability. Sizes range from small to large for varied performance demands.
Foil masts are offered in multiple lengths, with carbon fiber and anodized aluminum options to suit different performance demands and market positioning.
Foil fuselages come in three lengths, available in carbon fiber, titanium and aluminum to balance weight, stiffness, and control characteristics across different foil configurations.
Hydro-foil covers and bags offer durable, padded protection for safe storage and transport. Custom sizes and private label services are supported.
We can provide foil accessories include track boxes, screws, adapters, foil mounts, and mounting hardware, ensuring secure installation and system compatibility.
Different riding disciplines and customer groups require different lift, glide, turning response, speed range, stiffness, and price points. We can manufacture from your approved design or help translate your performance target into a production-ready composite structure. Customization can cover wing profile and area, mast and fuselage configuration, material layup, connection interface, surface finish, colors, branding, protective covers, and retail packaging.
Contact Us & Tell Us Requirements
Meeting Discuss & project assessment
(in 3 Working days)
Get the Hydro foil Price & Lead Time & Shipping Cost
(in 3 working days)
Material selection should follow the product target rather than a single “best” material. Carbon fiber is suited to lightweight, stiff, performance-focused systems; fiberglass can provide a practical balance of durability and cost; G10 is useful for selected wings and structural components where machinability and impact resistance are important. We review the application, geometry, target weight, stiffness, volume, tooling budget, and retail position before recommending a construction.
Unity Sports as a professional manufacturer of composite surf products, we are highly specialized in the production of hydrofoils. We are very experienced in controlling the layup of carbon fibers with different moduli, which directly affects the stiffness of the product and, in turn, is one of the factors determining the price you can sell it for. If you have any needs in this area, feel free to contact us. We are undoubtedly one of the most professional and trustworthy suppliers for you!
| DF | Materials | Tensile Modulus(GPa) | Tensile Strength(GPa) |
Standard Modulus (<265GPa) (also known as “High Strength’) | T300 | 230 | 3.53 |
| T700 | 235 | 5.3 | |
| HTA | 238 | 3.95 | |
| UTS | 240 | 48 | |
| 34-700 | 234 | 45 | |
| AS4 | 241 | 4 | |
| T650-35 | 241 | 4.55 | |
| Panex 33 | 228 | 3.6 | |
| F3C | 228 | 3.8 | |
| TR50S | 250 | 4.83 | |
| TR30S | 234 | 4.41 | |
Intermediate Modulus (265-320GPa) | T800 | 294 | 5.94 |
| M3OS | 294 | 5.49 | |
| IMS | 295 | 4.12/5.5 | |
| MR40VMR50 | 289 | 4.415.1 | |
| IMG/IM7 | 303 | 5.1/5.3 | |
| IM9 | 310 | 5.3 | |
| T650-42 | 290 | 4.82 | |
| T40 | 290 | 5.65 | |
High Modulus (320-440GPa) | M40 | 392 | 2.74 |
| M40J | 377 | 4.41 | |
| HMA | 358 | 3 | |
| UMS2526 | 395 | 4.56 | |
| MS40 | 340 | 4.8 | |
| HR40 | 381 | 4.8 | |
Uitra High Modulus (440GPa+) | M46J | 436 | 4.21 |
| UMS3536 | 436 | 4.5 | |
| HS40 | 441 | 4.4 | |
| UHMS | 441 | 3.45 |
Hydrofoil manufacturing experience since 2012, supporting global brands from sampling through repeat production.
A 24,000 m² facility and a team of more than 120 support composite molding, CNC machining, finishing, inspection, sewing, and packing. Staffing varies with seasonal production demand.
Production equipment includes 27 presses, 2 autoclaves, and 20 CNC machines for composite molding, curing, machining, tooling, and component production.
Nine major production stages and 37 sub-processes support material control, dimensional consistency, finish quality, assembly fit, and final inspection.
OEM, ODM, mold development, private labeling, and packaging support for established and emerging water sports brands.
Configurable materials, dimensions, interfaces, finishes, logos, covers, and packaging for specific markets and price positions.
We manufacture complete foil systems and individual components for wing, surf and prone, wake, SUP and downwind, kite, wind, and pump foiling. Our typical partners are water-sports brands, wholesalers, distributors, and product developers that need consistent production, private labeling, or a proprietary platform.
Use these resources to evaluate hydrofoil size, aspect ratio, materials, component geometry, riding application, manufacturing quality, and supplier capability. Start with our human hydrofoil buying guide or beginner hydrofoil selection guide, then explore hydrofoil types, materials, and working principles and our hydrofoil manufacturing process. Each guide connects the technical decision to relevant OEM options and products.
Among the foiling sports, there’s a remarkable type of Foiling called downwind SUP Foiling. Due to its innovation and excitement, Foiling has increasingly gained popularity among surfing enthusiasts in recent years. Today’s article is dedicated to introducing it, providing beginners with some basic understanding of the concept and operational techniques.
Whether buying a high modulus carbon fiber mast is worth it depends on your individual needs and budget. But as a 10+ years experience composite manufacturer in the surfing industry, we have reach experience on different modulus levels about hydrofoil masts. We will provide some factors to help you if
In recent years, the world of water sports has witnessed an exciting development with the emergence of wing foil boarding and pump foil boarding. These two water-based activities have gained popularity among adrenaline enthusiasts and water sports enthusiasts alike. In this article, we will delve into the world of wing
A Detailed Introduction What is a Hydrofoil Wakeboard? A hydrofoil wakeboard is an innovative watercraft designed for exhilarating rides atop the water’s surface. Unlike traditional wakeboards, this advanced apparatus features a hydrodynamic wing-like structure beneath the surface, known as a hydrofoil. If you are interested to custom a board
A hydrofoil is an underwater wing system that lifts a board above the water, reducing drag and changing speed, glide, and maneuverability. Hydrofoil systems are used for wing, surf, wake, SUP, downwind, kite, wind, and pump foiling.
We manufacture complete hydrofoil systems and individual components for brands, wholesalers, and distributors. Our products include:
Our OEM Hydro-foils can be tailored in multiple ways:
This flexibility allows brands to create unique Hydro-foil systems for their customers.
Both options are available:
This is designed to support your production needs and brand-specific configurations.
Public-mold products can start from MOQ 1. For a fully custom product, there is no fixed quantity requirement once the customer approves the dedicated mold cost. Samples normally take 7–21 days, and bulk production normally takes 30–60 days after specifications and approvals are confirmed.
Yes. Our OEM services include:
We aim to help water sports brands launch their own Hydro-foil lines efficiently.
Yes. We provide guidance on shipping options, costs, and lead times based on order volume and destination. Large orders can be shipped via sea or air freight, depending on requirements.
To start an OEM collaboration:
We specialize in B2B OEM Hydro-foil manufacturing, helping water sports brands bring their products to market with quality and efficiency.
Material selection depends on the target weight, stiffness, durability, cost, and application. Options include carbon fiber, fiberglass, G10, aluminum, and project-specific core structures. We confirm the material and layup for each approved design rather than applying one construction to every hydrofoil.
Available testing includes universal mechanical testing for torsion and breaking load, fatigue-life testing, waterproof sealing tests, hardness testing, suspended-load tensile checks, salt-spray corrosion testing, and UV exposure testing. The applicable test plan is confirmed according to the component and customer specification.
