Foil Board Manufacturer & OEM Supplier
UnitySurf manufactures composite foil boards for surf foiling, wing foiling, wake foiling, kite foiling, SUP foiling and other hydrofoil applications. We provide OEM, ODM and private-label production for brands, distributors and water sports companies, with custom board designs, materials, graphics, EVA layouts and production specifications.
Foil Board Manufacturing
We offer custom and wholesale surf foilboards at good prices, as well as OEM service. Our foilboards are produced via high-temperature compression molding. Made from prepreg carbon fiber and high-density foam core, they undergo full high-temperature curing to eliminate secondary foaming. This process delivers superior mechanical performance and precise dimensional accuracy, closely matching your 3D design files. The carbon fiber hydrofoil surfboard is lighter and stronger; it provides a better foil surfing feeling.
We serve surf brands, foil brands, distributors, wholesalers and water sports companies. If you have the design of the EVA or patterns, we also can custom your brand on the board. Welcome to contact us to get the custom service details.
Meanwhile, if you need to choose a hydrofoil set, please click the link to choose.
Unitysports Carbon Foil Board Advantages
Hard & strong but lighter, our hydrofoil carbon board is made of new composite carbon technology. It is much lighter than traditional carbon fiber boards, but just as hard.
Aerospace-grade, high-density core materials have better hydrophobicity and stable performance.
Produced by mold pressing technology, with this process, the precision of the board is very high. The error can be controlled to 0.01 mm.
We have our testing laboratory to test our foil surfboard’s data. For example, 300000 times cycles with 80kgf for the fatigue test. For more details, welcome customers to send us an inquiry to get it.
What Kinds Of Foilboards We Can Manufacture?
All our foilboards adopt high-temperature compression molding technology. Made of composite materials, they feature excellent performance and highly precise appearance, nearly identical to your 3D drawings. With high-temperature curing, secondary foaming is completely avoided. Using prepreg carbon fiber and high-density foam core, our boards achieve high strength and low weight, perfect for high-end applications.
We can produce all types of composite (carbon fiber, glassfiber) hard boards:
- Wakefoil Board
- Some Wingfoil Boards
- Kite Foilboard
- Pumping Board
- Prone/ Surf Foilboard
- Etc.
Carbon Fiber Foil Board Materials & Construction

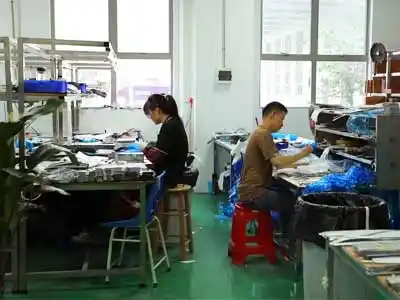

Carbon Fiber Construction
We utilize prepreg carbon fiber available in multiple modulus grades: T700, T800, M40, M46. We combine unidirectional and twill weave carbon fiber. Ply layup is fully customized per your needs, and our engineers help assess structural performance.
Core Materials
We adopt high-performance PMI foam as our primary core material. It features excellent heat resistance and will not suffer secondary foaming during manufacturing. Alternative core materials can be supplied upon your custom requirements.

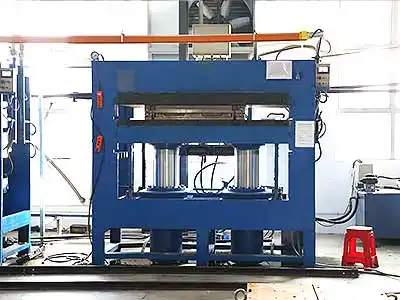

Compression Molding
Our high-temperature compression molding works without an autoclave. It achieves precise dimensions matching your 3D models, smooth surface finish and stable mass production consistency. Suitable for small-size foil boards including wakefoil, kite foil and pumping boards.
Carbon Fiber Foil Board Materials & Construction
| Specification | Custom Options |
|---|---|
| Board Type | Surf / Wing / Wake / Kite / Pump |
| Construction | Carbon Fiber / Fiberglass / Composite |
| Core | High-density foam core (eg PMI foamcore) |
| Surface | 3K carbon / custom finish |
| Length | Custom |
| Width | Custom |
| Thickness | Custom |
| Volume | Custom |
| Foil Mount | Custom according to design |
| EVA Pad | Custom |
| Graphics | Custom logo / pattern |
| Color | Custom |
| Packaging | Custom |
How to Custom Foilboard?
Our complete foilboard customization workflow covers inquiry, design validation, cost assessment, sample making, quality testing and mass production. Our team supports OEM & ODM to realize your custom hydrofoil board project.
1. Send Us An Inquiry
Share your project requirements, target specs and expected quantity with us. Our sales team will respond promptly to start your custom foilboard project.
2. Send your foilboard design
Submit your 3D files, sketches or reference drawings. Our engineers will review your design and check manufacturability.
3. Discuss & assess the cost
We will discuss material options, layup plan and production schedule with you, then provide a formal quotation based on your design.
4. Hydrofoil board sample production
Once the design and quotation are confirmed, we start mold preparation and manufacture your foilboard prototype for validation.
5. Quality test & your feedback
We perform internal quality inspection on the sample. You can test the prototype and share feedback for revisions if needed.
6. Arrange the mass production
After sample approval, we schedule mass production with strict quality control to deliver consistent finished foilboards.
FAQ
Click "get a quote" or "send request now" button. And we will send the price for you with details.
Yes, contact us and tell us your request. We will evaluate and give you price.
For the public mould, the MOQ is 1;
For the product need to be customized, please contact us to confirm. Generally, is from 20 to 100 pcs, which is depended on the production process.
Yes, the sample is welcome before bulk order not matter for the public item or personalized customized item.
Sure, we can add your design on the public mould. Such as, the LOGO, EVA, and patterns.
Contact us and you can get the our product catalog. Unity Sports are not only a foil board manufacturer but also can produce various of surfing products.
